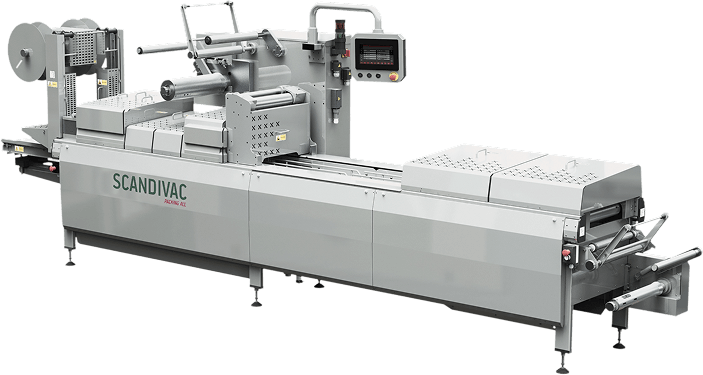

Scandivac SC190
Thermoforming Vacuum Packaging Machine
An efficient Thermoforming Vacuum Packaging Machine with an intuitive interface and enhanced safety features, this reliable machine is ideal for Vacuum Skin Pack (VSP) model only.
- Versatile fixed skin forming depths (5mm to 30mm).
- Pre-heating station and easy-to-tear tab.
- Supports product protrusion up to 30mm beyond package edges.
- Robust capacity: up to 6-8 cycles per minute, depending on product and film used.
- Easy-to-operate FESTO microcontroller with touchscreen, multilingual interface, and 100 programmable settings.
- Precise control of temperature and vacuum directly from the interface.
- Reliable safety features include emergency stop buttons, safety slides, removable safety guards, safety switches, and mechanical access protection.
- Pneumatic and vacuum systems with high-quality FESTO components ensure durability and consistent performance.
- Film unwinding units equipped with pneumatic tension controls and end-of-web detection.
- Precise film shifting through servo-driven transport chains for accuracy, regardless of machine speed.
- A high-quality sealing system accommodates product protrusion with dedicated evacuation channels.
- Integrated BUSCH vacuum pumps for optimal vacuum packaging.
- Versatile fixed skin forming depths (5mm to 30mm).
- Pre-heating station and easy-to-tear tab.
- Supports product protrusion up to 30mm beyond package edges.
- Robust capacity: up to 6-8 cycles per minute, depending on product and film used.
- Easy-to-operate FESTO microcontroller with touchscreen, multilingual interface, and 100 programmable settings.
- Precise control of temperature and vacuum directly from the interface.
- Reliable safety features include emergency stop buttons, safety slides, removable safety guards, safety switches, and mechanical access protection.
- Pneumatic and vacuum systems with high-quality FESTO components ensure durability and consistent performance.
- Film unwinding units equipped with pneumatic tension controls and end-of-web detection.
- Precise film shifting through servo-driven transport chains for accuracy, regardless of machine speed.
- A high-quality sealing system accommodates product protrusion with dedicated evacuation channels.
- Integrated BUSCH vacuum pumps for optimal vacuum packaging.
Dimensions
- Length: 5500mm
- Width: 1216mm
- Height: 1850+50mm
Film Specs
- Lower film width: 420mm, Thickness: 400µm (rigid)
- Upper film width: 420mm, Thickness: up to 150µm (flexible)
Power and Utilities
- Supply Voltage: 400-415V, 50Hz, 16-32kW, 32A, 3-phase
- Compressed Air: 800-1000 l/min, 6-8 bar
- Water Supply: 200-400 l/h, 5-10°C, 1.5-3 bar
The Scandivac SC190 is now available for $225,000 + GST — contact our sales team today if you’re interested in securing this high-performance machine.
Safe & Reliable
Equipped with a range of safety features and pneumatic and vacuum systems with high-quality FESTO components, the SC190 machine is consistent in its safety, reliability, and performance.Â
Efficient
The robust capacity of the SC190 means it can complete up to 8 cycles per minute, depending on the product and film used, making this machine one of the most efficient yet.Â
Easy To Use
An intuitive interface with an easy-to-operate FESTO microcontroller equipped with a touchscreen, multiple language options and 100 programmable settings.Â
Watch the video linked below
To learn more about the Scandivac SC190 Thermoforming Vacuum Packaging Machine, book a demonstration with us. If you know this is the machine for you, contact our sales team directly [email protected]
